tl;dr

The triangle is the canonical "Hello World" for an OpenGL program. I do my first shader-based triangle.

Initializing OpenGL

The OpenGL standard doesn't specify a platform-agnostic way to get an OpenGL window and context created - it only kicks in once that context is created. GLFW is a bare-bones library that provides a consistent way to create windows and contexts and to handle input so I don't have to write platform-specific code (at least for a while), and won't get in my way in learning OpenGL itself.

Also, the OpenGL functions like glShaderSource aren't specified in some official OpenGL library. Instead, they are implemented in some OpenGL driver, and running glShaderSource on the same machine, with the same binary, may execute very different commands depending on which device is being rendered to. What you see as glShaderSource is essentially a function pointer to the real implementation. It may also just not exist in some cases - such as if you want to use an OpenGL 4.1 function where your driver only provides OpenGL 3.3.

GLEW (in the C++ world) and Derelect's gl3 module (in the D world) can do this automatically for you

What are shaders?

Since I'm still new at this, I may be totally wrong, but the way I'm thinking about shaders (specifically, shaders in OpenGL, written in GLSL) is that they're programs that create or manipulate information about vertices (the points at the corner of shapes) and the pixels that these vertices contain.

GLSL shaders are written in a C-like language. In this triangle-displaying program, I need two shaders - one to place the vertices, and one to colour the pixels.

#version 330 core
layout(location = 0) in vec4 pos;

void main() {
    gl_Position = pos;
}

This is a pass-through vertex shader.

The first line of this and all shaders is the version - in this case the GLSL version attached to OpenGL 3.3 (OpenGL 3.2 came with GLSL 1.5).

This shader program (the vertex shader) declares that it will receive a single argument pos which is a vec4 (a vector made up of 4 floats). gl_Position is where the vertex will be placed - in this case, exactly where it initially was described.

#version 330 core
out vec3 color;

void main() {
    color = vec3(1, 0, 0);
}

This simplistic fragment shader always returns red (r = 1, g = 0, b = 0), and doesn't take any arguments, although it is possible to pass arguments from the vertex shader to the fragment shader.

Shaders are compiled and the linked into programs, which you can then choose between before sending vertices at your graphics card.

Buffer and array objects

My previous attempts at using OpenGL used "direct mode", where I would execute individual glVertex calls for each vertex in every frame.

A vertex array means using a single command to take action on a number of specified vertices using something like glDrawArray.

Using a vertex buffer means storing the vertex information on the graphics card instead of sending it over every frame.

Putting it together

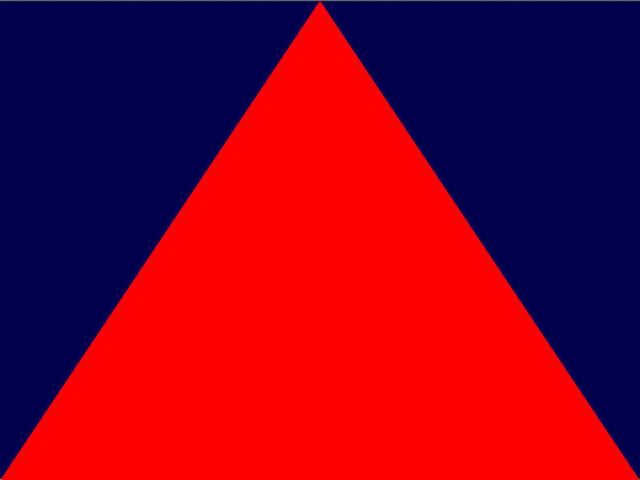

Here is the state of of my code repo at this point. If you compile libglfw on any platform, and put it next to the binary compiled from the two source files, it should display a simple red triangle on a dark blue background at 640x480, like this:
