play.TechGeneral : Introduction to textures

tl;dr

Solid colour and rainbow-coloured spinning objects are cool for a while, but easier control of what each object looks like (the colour information, not the shape) is probably needed. So, I've implemented texture support in the latest demo, made a texture, and made my spinning cubes slightly more interesting.

Texture2D

I'm using a 2D texture (there are also 1D and 3D textures, but I don't really understand those yet), so first step is to make the wrapper class around the bind/unbind/setData as I did for the ArrayBuffer and ElementArrayBuffer classes.

class Texture2D {
    private uint _location;
    this() {
        glGenTextures(1, &_location);
    }
    ~this() {
        writefln("Destroying texture at location %d", _location);
        glDeleteTextures(1, &_location);
    }
    void bind() {
        glBindTexture(GL_TEXTURE_2D, _location);
    }
    void unbind() {
        glBindTexture(GL_TEXTURE_2D, 0);
    }
    void setData(char* data, int width, int height) {
        glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA8, width, height, 0, GL_RGBA, GL_UNSIGNED_BYTE, data);
        glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);
        glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);
        glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);
        glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
    }
}

The create/delete/bind/unbind is fairly standard, but it took a bunch of experimenting (and undoubtably would have led to hair-pulling if I had any at the time) to get the glTexImage2D and glTexParameteri calls just right for what I needed.

glTexImage2D registers the texture with the related data. The first argument is the target texture (GL_TEXTURE_2D in this case). The second is the level-of-detail - for now, just the base level-of-detail. The format is next - RGBA8 means 8 bits dedicated to each channel of red, green, blue, and alpha. The width and height of the picture data is next, and then the border value (which apparently has to be 0 anyway).

The format is GL_RGBA - didn't we just say that earlier? GL_RGBA8 seems to specify how the bytes in the texture are layed out, while GL_RGBA specifies that the texture has four channels, and that it will be stored as a float of range [0, 1].

Finally the data - this is just char * raw byte data.

stb_image

Libraries to load images exist with D bindings - such as FreeImage and DevIL, but neither came with Mac OS builds, and I wasn't looking forward to potentially spending the afternoon building them.

Instead, I spent the afternoon building my own bindings to a simple single-file "library" for loading a bunch of image types named stb_image.c. Building a dynamic library from it was two simple commands, and I then created a simple Derelict wrapper for it:

module derelict.stb_image.stb_image;

private {
    import derelict.util.loader;
    import derelict.util.system;

    static if( Derelict_OS_Mac ) {
        enum libNames = "stb_image.0.dylib";
    } else {
        static assert( 0, "Need to implement stb_image libNames for this operating system." );
    }
}

extern( C ) nothrow {
    alias da_stbi_load = char* function(const(char)*, int*, int*, int*, int);
    alias da_stbi_image_free = void function(void*);
}

__gshared {
    da_stbi_load stbi_load;
    da_stbi_image_free stbi_image_free;
}

class DerelictStb_imageLoader : SharedLibLoader {
    public this() {
        super( libNames );
    }

    protected override void loadSymbols() {
        bindFunc( cast( void** )&stbi_load, "stbi_load" );
        bindFunc( cast( void** )&stbi_image_free, "stbi_image_free" );
    }
}

__gshared DerelictStb_imageLoader DerelictStb_image;

shared static this() {
    DerelictStb_image = new DerelictStb_imageLoader();
}

Not too much to say here - Derelict's SharedLibLoader finds the stb_image.0.dylib library in the same directory as the binary, dlopens them, and binds the symbols by name to the pre-prepared variables.

The texture

I fired up Pixelmator and created a 1800x1200 image and cleared the background. For six sides of the die, I now have a 2-by-3 grid of 600x600px images.

Having almost no design or image editing skills, I came up with:

Dice texture

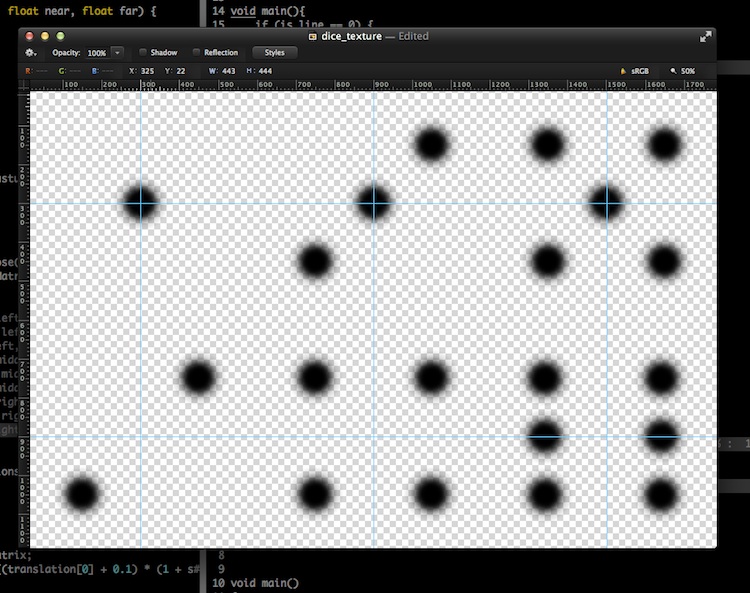

As a hint, I ended up setting guide rules at the center of each image to make moving the die faces to exactly the right place. I then made the die images in a separate 600x600 window and moved them to this one.

Making the texture

DiceFace class

Unfortunately this is still a fairly large amount of code, again dominated by storing the vertex information in code. I did make some effort to simplify making the element arrays using for loops, since they are in a easy-to-program order now.

class DiceFace {
    VertexArray va;
    ArrayBuffer vertices;
    ElementArrayBuffer cube;
    ElementArrayBuffer lines;
    Texture2D texture;

    DiceFaceProgram program;
    import std.path : buildPath, dirName;

    this(DiceFaceProgram p) {
        program = p;

        va = new VertexArray();
        va.bind();

        texture = new Texture2D();
        glActiveTexture(GL_TEXTURE0);
        glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);
        texture.bind();

        int width, height, comp;
        string filepath = "dice_texture.png";
        char* image_data = stbi_load(filepath.ptr, &width, &height, &comp, 4);
        writefln("Width: %d, Height: %d, Comp: %d", width, height, comp);
        texture.setData(image_data, width, height);

        const float vertices_[] = [
            // back face - 1
            -1f, -1f, -1f, 1f,   1, 0.5, 0.5,  (0/3f),  (0/2f),
            -1f,  1f, -1f, 1f,   1, 0.5, 0.5,  (0/3f),  (1/2f),
             1f,  1f, -1f, 1f,   1, 0.5, 0.5,  (1/3f),  (1/2f),
             1f, -1f, -1f, 1f,   1, 0.5, 0.5,  (1/3f),  (0/2f),

            // front face - 6
            -1f, -1f,  1f, 1f,   1, 0.5, 0.5,  (2/3f),  (1/2f),
            -1f,  1f,  1f, 1f,   1, 0.5, 0.5,  (2/3f),  (2/2f),
             1f,  1f,  1f, 1f,   1, 0.5, 0.5,  (3/3f),  (2/2f),
             1f, -1f,  1f, 1f,   1, 0.5, 0.5,  (3/3f),  (1/2f),

            // top face - 3
            -1f,  1f, -1f, 1f,   1, 0.5, 0.5,  (1/3f),  (0/2f),
            -1f,  1f,  1f, 1f,   1, 0.5, 0.5,  (1/3f),  (1/2f),
             1f,  1f,  1f, 1f,   1, 0.5, 0.5,  (2/3f),  (1/2f),
             1f,  1f, -1f, 1f,   1, 0.5, 0.5,  (2/3f),  (0/2f),

            // bottom face - 4
            -1f, -1f, -1f, 1f,   1, 0.5, 0.5,  (1/3f),  (1/2f),
            -1f, -1f,  1f, 1f,   1, 0.5, 0.5,  (1/3f),  (2/2f),
             1f, -1f,  1f, 1f,   1, 0.5, 0.5,  (2/3f),  (2/2f),
             1f, -1f, -1f, 1f,   1, 0.5, 0.5,  (2/3f),  (1/2f),

            // left face - 2
            -1f, -1f, -1f, 1f,   1, 0.5, 0.5,  (0/3f),  (1/2f),
            -1f, -1f,  1f, 1f,   1, 0.5, 0.5,  (0/3f),  (2/2f),
            -1f,  1f,  1f, 1f,   1, 0.5, 0.5,  (1/3f),  (2/2f),
            -1f,  1f, -1f, 1f,   1, 0.5, 0.5,  (1/3f),  (1/2f),

            // right face - 5
             1f, -1f, -1f, 1f,   1, 0.5, 0.5,  (2/3f),  (0/2f),
             1f, -1f,  1f, 1f,   1, 0.5, 0.5,  (2/3f),  (1/2f),
             1f,  1f,  1f, 1f,   1, 0.5, 0.5,  (3/3f),  (1/2f),
             1f,  1f, -1f, 1f,   1, 0.5, 0.5,  (3/3f),  (0/2f),

        ];
        vertices = new ArrayBuffer();
        vertices.setData!(const float[])(vertices_, GL_STATIC_DRAW);

        ushort cube_elements[];
        foreach (int x; [0,1,2,3,4,5]) {
            foreach (int y; [0, 1, 2, 0, 2, 3]) {
                cube_elements ~= cast(ushort)((x*4) + y);
            }
        }
        cube = new ElementArrayBuffer();
        cube.setData!(ushort[])(cube_elements, GL_STATIC_DRAW);

        ushort line_elements[];
        foreach (int x; [0,1,2,3,4,5]) {
            foreach (int y; [0, 1, 1, 2, 2, 3, 3, 0]) {
                line_elements ~= cast(ushort)((x*4) + y);
            }
        }
        lines = new ElementArrayBuffer();
        lines.setData!(ushort[])(line_elements, GL_STATIC_DRAW);

        lines.unbind();
        va.unbind();
    }

    void draw() {
        program.uniforms.is_line = 0;
        program.uniforms.tex = 0;
        vertices.bind();
        cube.bind();
        texture.bind();
        // Layout of the stuff to draw
        glVertexAttribPointer(0, 4, GL_FLOAT, GL_FALSE, 9 * float.sizeof, cast(void*)(0 * float.sizeof));
        glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, 9 * float.sizeof, cast(void*)(4 * float.sizeof));
        glVertexAttribPointer(2, 2, GL_FLOAT, GL_FALSE, 9 * float.sizeof, cast(void*)(7 * float.sizeof));

        // Draw it!
        glDrawElements(GL_TRIANGLES, 36, GL_UNSIGNED_SHORT, cast(void *)0);

        program.uniforms.is_line = 1;
        lines.bind();

        glDrawElements(GL_LINES, 48, GL_UNSIGNED_SHORT, cast(void *)0);
    }

    void bind() {
        va.bind();
        program.use();
        glEnableVertexAttribArray(0);
        glEnableVertexAttribArray(1);
        glEnableVertexAttribArray(2);
    }

    void unbind() {
        glDisableVertexAttribArray(2);
        glDisableVertexAttribArray(1);
        glDisableVertexAttribArray(0);
        va.unbind();
    }
}

Texture loading

The actual texture loading part is only these few lines:

texture = new Texture2D();
glActiveTexture(GL_TEXTURE0);
glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);
texture.bind();
int width, height, comp;
string filepath = "dice_texture.png";
char* image_data = stbi_load(filepath.ptr, &width, &height, &comp, 4);
texture.setData(image_data, width, height);

glActiveTexture is which texture "slot" to write this into. For now, just the base one.

The glBlendFunc call is used so that the alpha transparency in the die face is blended with the color.

stbi_load is the call into stb_image.c, giving the path of the file and the 4 components (ie, RGBA), and storing the width, height, and the number of components in the file itself.

Finally, set the data into the texture object!

Texture mapping

With the texture now loaded, I need to define the faces onto which to apply the texture. I need to create unique vertices for each corner as part of each face, since they need different instructions on how the texture will apply to the face. Before I just reused the vertices for each of the three faces it was part of.

Here are the vertices for one of the faces:

// back face - 1
-1f, -1f, -1f, 1f,   1, 0.5, 0.5,  (0/3f),  (0/2f),
-1f,  1f, -1f, 1f,   1, 0.5, 0.5,  (0/3f),  (1/2f),
 1f,  1f, -1f, 1f,   1, 0.5, 0.5,  (1/3f),  (1/2f),
 1f, -1f, -1f, 1f,   1, 0.5, 0.5,  (1/3f),  (0/2f),

The back face is made up of four vertices - in the case bottom left, top left, top right, and bottom right. In addition to the previous values of vertex positions (x, y, z, w) and color (r, g, b), we now have texture lookup information (u, v). The texture for the 1 die face is the first one - located in the first of two rows, and the first of three columns.

The other way to think of that is the x co-ordinates start at 0 and continue to 1/3 (first of three columns), and the y co-ordinates start at 0 and continue to 1/2 (first of two rows).

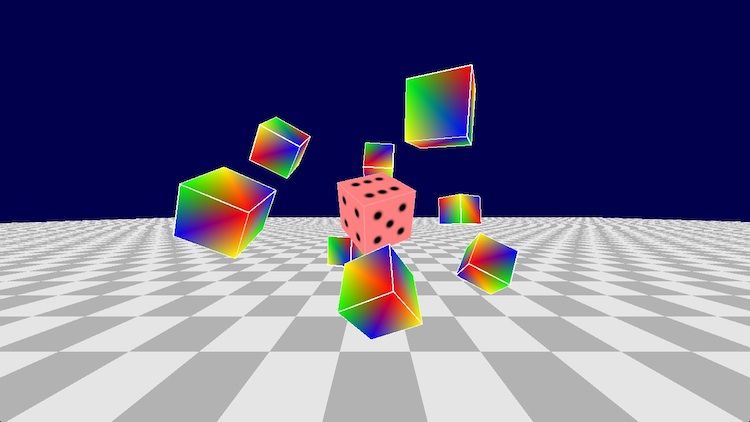

Putting it together

DiceFace

Here is the commit that introduces all the texture plumbing above. If you want to actually build and run it, though, grab the next commit which brings in the image loading code and provides dynamic libraries (for OS X, at least) into the repo.

Next up

Assets! Importing models authored in tools such as Blender into the program.
