In my previous post I wrote a set of classes for shaders and
programs, along with some compile-time function execution to being in
compile-time-checked variables from the shaders. My next step is to take
OpenGL concepts like Vertex Array Objects, Array Buffers, Element Array
Buffers, and wrap them in simple classes to ease their usage, and then to prove
it out a bit by having two different sets of programs, shaders, buffers, and so
forth to draw different things.
Here's the demo video I posted at the end of previous post that teased about these two sets of objects I'm describing in this post, in case you missed it:
OpenGL wrapper
Here are the classes that wrap the OpenGL concepts of arrays, buffers, and so forth:
module abandonedtemple.demos.demo3_glwrapper; import std.range : ElementType; import std.stdio : writefln; import std.traits : isArray; import derelict.opengl3.gl3: glGenBuffers, glGenVertexArrays, glBindBuffer, glBindVertexArray, glBufferData, glDeleteBuffers, glDeleteVertexArrays, GL_ARRAY_BUFFER, GL_ELEMENT_ARRAY_BUFFER ; class VertexArray { private uint _location; this() { glGenVertexArrays(1, &_location); } ~this() { writefln("Destroying Vertex Array at location %d", _location); glDeleteVertexArrays(1, &_location); } void bind() { glBindVertexArray(_location); } void unbind() { glBindVertexArray(0); } } mixin template Buffer() { private uint _location; this() { glGenBuffers(1, &_location); } ~this() { writefln("Destroying buffer of type %s at location %d", _type, _location); glDeleteBuffers(1, &_location); } void bind() { glBindBuffer(_type, _location); } void unbind() { glBindBuffer(_type, 0); } void setData(T)(const auto ref T data, uint usage) if (isArray!T) { glBindBuffer(_type, _location); auto size = data.length * ElementType!T.sizeof; glBufferData(_type, size, data.ptr, usage); } } class ArrayBuffer { static uint _type = GL_ARRAY_BUFFER; mixin Buffer; } class ElementArrayBuffer { static uint _type = GL_ELEMENT_ARRAY_BUFFER; mixin Buffer; }
I'm erring on the side of explicitness in my imports - only grabbing what I'm
using from the derelict.opengl3.gl3 module. I'm not a particular fan (yet?)
of not knowing where my functions are coming from.
The VertexArray class is fairly simple, since basically all you can do with
vertex array objects are create, bind, unbind, and delete them.
ArrayBuffer and ElementArrayBuffer are basically identical except for the
type. I used a mixin template here instead of inheritance because I didn't
see the value of treating ArrayBuffer and ElementArrayBuffer objects ever
as something similar. I don't need to create a generic Buffer argument that
could take either, so there is no reason they should share an interface or base
class. Might turn out to be the wrong choice, but it should be easy to change.
The Buffer mixin template is fairly straight-forward except for setData.
Here's that function declaration again:
void setData(T)(const auto ref T data, uint usage) if (isArray!T) {
setData is a method templated by a single type T, which is the base type of
the data argument. data is qualified as being const auto ref. const
means that the function will not be changing data. auto ref means that the
"refness" of data will depend on whether it is "refable". It will be a
ref if it can be (ie, data is an lvalue), and not ref if it can't.
More at Function Templates with Auto Ref Parameters.
The is (isArray!T) is the final puzzle - it says that this method only
applies if T has the trait isArray. This is a template
constraint. More traits live in
std.traits, and you can create your
own too.
In this case, setData being given a D array is able to get the pointer to the
first value, as well as the size in bytes. The latter uses ElementType,
which is a template that returns the type of the element in the array (and in a
range, per its location in std.range). From the length (all D arrays know
their length) and the size of the element type, the size in bytes can be
calculated.
RainbowCube
Now I want to encapsulate all that's involved in drawing the rainbow cubes into a class.
class RainbowCube { VertexArray va; ArrayBuffer vertices; ElementArrayBuffer cube; ElementArrayBuffer lines; RainbowProgram program; this(RainbowProgram p) { program = p; va = new VertexArray(); va.bind(); const float vertices_[] = [ -1f, -1f, -1f, 1f, 1f, 0f, 0f, -1f, 1f, -1f, 1f, 0f, 1f, 0f, 1f, 1f, -1f, 1f, 0f, 0f, 1f, 1f, -1f, -1f, 1f, 1f, 1f, 0f, -1f, -1f, 1f, 1f, 0f, 0f, 1f, -1f, 1f, 1f, 1f, 1f, 1f, 0f, 1f, 1f, 1f, 1f, 1f, 0f, 0f, 1f, -1f, 1f, 1f, 0f, 1f, 0f, ]; vertices = new ArrayBuffer(); vertices.setData!(const float[])(vertices_, GL_STATIC_DRAW); ushort cube_elements[] = [ // back face 0, 1, 2, 0, 2, 3, // front face 4, 5, 6, 4, 6, 7, // left face 0, 4, 5, 0, 1, 5, // right face 2, 6, 7, 2, 3, 7, // bottom face 0, 3, 4, 3, 4, 7, // top face 1, 2, 5, 2, 5, 6, ]; cube = new ElementArrayBuffer(); cube.setData!(ushort[])(cube_elements, GL_STATIC_DRAW); ushort line_elements[] = [ // back face 0, 1, 1, 2, 2, 3, 3, 0, // front face 4, 5, 5, 6, 6, 7, 7, 4, // remainder of left face // 0, 1, // already in back face // 4, 5, // already in front face 0, 4, 1, 5, // remainder of right face // 2, 3, // already in back face // 6, 7, // already in front face 2, 6, 3, 7, // top and bottom faces already have all lines ]; lines = new ElementArrayBuffer(); lines.setData!(ushort[])(line_elements, GL_STATIC_DRAW); lines.unbind(); va.unbind(); } void draw() { program.uniforms.is_line = 0; vertices.bind(); cube.bind(); // Layout of the stuff to draw glVertexAttribPointer(0, 4, GL_FLOAT, GL_FALSE, 7 * float.sizeof, cast(void*)(0 * float.sizeof)); glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, 7 * float.sizeof, cast(void*)(4 * float.sizeof)); // Draw it! glDrawElements(GL_TRIANGLES, 36, GL_UNSIGNED_SHORT, cast(void *)0); program.uniforms.is_line = 1; lines.bind(); glDrawElements(GL_LINES, 24, GL_UNSIGNED_SHORT, cast(void *)0); } void bind() { va.bind(); program.use(); glEnableVertexAttribArray(0); glEnableVertexAttribArray(1); } void unbind() { glDisableVertexAttribArray(1); glDisableVertexAttribArray(0); va.unbind(); } }
The top-level functions are initialisation (done in the constructor), drawing,
and the inevitable binding and unbinding. The latter can't (yet) be put into
draw, since some activities that might be involved in drawing aren't (yet)
encapsulated in the class - for example, setting up the rotation uniforms.
There's still a lot of code in initialisation - although mostly in setting up
the vertices and the arrays. The downside of classes also shows here - we
need to construct them (not needed with a struct). And the bind and
unbind calls are still a little annoying.
This should be greatly simplified when I store the vertex information in
external files instead of code (and remember, I still have the option to put
them in the binary by using compile-time function execution, if it makes
sense). I will probably look at converting to struct for the wrappers, and
make a bind/unbind wrapper template class I can use when I want to use them.
draw, bind, and unbind are a wash in terms of number of lines of code,
but not having to call the different underlying OpenGL functions saves some
headache.
Demo class
Here's a simplified version of what Demo looks like now:
class Demo : DemoBase { private { RainbowCube rainbowCube; RainbowProgram rainbowProgram; mat4 frustumMatrix; void bufferInit() { rainbowCube = new RainbowCube(rainbowProgram); } void drawRainbowCubes() { rainbowCube.bind(); rainbowProgram.uniforms.u_frustum.setTranspose(true); rainbowProgram.uniforms.u_frustum = frustumMatrix; auto cube_translations = [ [ -1.2f, -1.0f, -1.2f, 2f, -4.5f ], // left, bottom, back [ -1.2f, 0f, 1.2f, -2f, -3.5f ], // left, middle, front [ -1.2f, 1.2f, 0f, 1f, 2.5f ], // left, top, middle [ 0f, -1.0f, 1.2f, -1f, 2.5f ], // middle, bottom, front [ 0f, 0f, 0f, 9f, 5.5f ], // middle, middle, middle [ 0f, 1.2f, -1.2f, -3f, 6.5f ], // middle, top, back [ 1.2f, -1.0f, 0f, 1f, -2.5f ], // right, bottom, middle [ 1.2f, 0f, -1.2f, -2f, -4.5f ], // right, middle, back [ 1.2f, 1.2f, 1.2f, 2f, 7.5f ], // right, top, front ]; foreach (float[] translation; cube_translations) { auto matrix = mat4.identity .rotatez(timeDiff * translation[3]) .rotatex(timeDiff * translation[4]) .scale(0.3, 0.3, 0.3) ; rainbowProgram.uniforms.u_transform = matrix; rainbowProgram.uniforms.u_offset = vec4((translation[0] + 0.1) * (1 + sin(timeDiff * (4 / translation[3])) / 2), translation[1] * (1 + sin(timeDiff / 2) / 4), -3.5 + translation[2], 0f); // What to draw rainbowCube.draw(); } // Disable all the things rainbowCube.unbind(); glUseProgram(0); } void display() { glClear(GL_COLOR_BUFFER_BIT|GL_DEPTH_BUFFER_BIT); drawRainbowCubes(); } void init() { rainbowProgram = new RainbowProgram(); glClearColor(0.0f, 0.0f, 0.3f, 0.0f); bufferInit(); } } }
It's a lot shorter now, and how to add new programs and things to draw with
them is fairly straight-forward. And there is relatively little use of
underlying OpenGL functions at this layer.
The rainbowProgram.uniforms having compile-time type checking has been pretty
useful while playing around, so I'm currently fairly happy with it despite the
gnarliness of the code.
Something new
The above changes just changed the code, but the demo does basically the same thing it did before.
I wanted to put a floor in, and here's what I did:
class ChessCube { VertexArray va; ArrayBuffer vertices; ElementArrayBuffer cube; ElementArrayBuffer lines; ChessProgram program; this(ChessProgram p) { program = p; va = new VertexArray(); va.bind(); const float vertices_[] = [ -1f, -1f, -1f, 1f, 0f, 0f, 0f, -1f, 1f, -1f, 1f, 1f, 1f, 1f, 1f, 1f, -1f, 1f, 1f, 1f, 1f, 1f, -1f, -1f, 1f, 0f, 0f, 0f, -1f, -1f, 1f, 1f, 0f, 0f, 0f, -1f, 1f, 1f, 1f, 1f, 1f, 1f, 1f, 1f, 1f, 1f, 1f, 1f, 1f, 1f, -1f, 1f, 1f, 0f, 0f, 0f, ]; vertices = new ArrayBuffer(); vertices.setData!(const float[])(vertices_, GL_STATIC_DRAW); ushort cube_elements[] = [ // back face 0, 1, 2, 0, 2, 3, // front face 4, 5, 6, 4, 6, 7, // left face 0, 4, 5, 0, 1, 5, // right face 2, 6, 7, 2, 3, 7, // bottom face 0, 3, 4, 3, 4, 7, // top face 1, 2, 5, 2, 5, 6, ]; cube = new ElementArrayBuffer(); cube.setData!(ushort[])(cube_elements, GL_STATIC_DRAW); cube.unbind(); va.unbind(); } void draw() { vertices.bind(); cube.bind(); // Layout of the stuff to draw glVertexAttribPointer(0, 4, GL_FLOAT, GL_FALSE, 7 * float.sizeof, cast(void*)(0 * float.sizeof)); glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, 7 * float.sizeof, cast(void*)(4 * float.sizeof)); // Draw it! glDrawElementsInstanced(GL_TRIANGLES, 36, GL_UNSIGNED_SHORT, cast(void *)0, 8192); } void bind() { va.bind(); program.use(); glEnableVertexAttribArray(0); glEnableVertexAttribArray(1); } void unbind() { glDisableVertexAttribArray(1); glDisableVertexAttribArray(0); va.unbind(); } }
The first thing that strikes me is that it is almost identical to the
RainbowCube, which makes me want to run off and find some way to share code.
But ignoring that for a second...
glDrawElementsInstanced is new! Here is the old and new lines next to each other:
glDrawElements(GL_TRIANGLES, 36, GL_UNSIGNED_SHORT, cast(void *)0); glDrawElementsInstanced(GL_TRIANGLES, 36, GL_UNSIGNED_SHORT, cast(void *)0, 8192);
The only difference is the 8192 at the end. That says to do 8192 instances
of the draw command. That sounds a bit silly at first, since what is the point
of drawing 8192 cubes at the same location?
The vertex shader tells the story:
#version 330 core layout(location = 0) in vec4 pos; layout(location = 1) in vec3 color; uniform mat4 u_transform; uniform vec4 u_offset; uniform mat4 u_frustum; uniform int width; out vec3 Color; void main(){ float x; x = floor(gl_InstanceID / width); float y = mod(gl_InstanceID, width); if (mod(gl_InstanceID + x, 2) > 0.1) { Color = vec3(0.9, 0.9, 0.9); } else { Color = vec3(0.7, 0.7, 0.7); } vec4 offset = u_offset + vec4(y * 0.8, 0, -x * 0.8, 0); gl_Position = (pos * u_transform + offset) * u_frustum; }
This could surely be written better, but I am still figuring out life with only
floats! gl_InstanceID contains the instance number (from 0 to 8191 in
this case) of the draw command. I use that to calculate x and y offsets to the
original offset given to me (based on the new width uniform). This ends up
creating a chess/checker board effect.
The fragment shader is the same as the one used for the rainbow cubes, and
RainbowProgram is defined with:
mixin(program_from_shader_filenames("ChessProgram", ["demo3/FragmentShader.frag","demo3/ChessBoard.vert"]));
Mechanically putting code lines wherever rainbow cubes are being set up to set
up the chess program, we're left with drawChessCubes:
void drawChessCubes() { chessCube.bind(); chessProgram.uniforms.u_frustum.setTranspose(true); chessProgram.uniforms.u_frustum = frustumMatrix; auto matrix = mat4.identity.scale(0.4, 0.4, 0.4); chessProgram.uniforms.u_transform = matrix; chessProgram.uniforms.u_offset = vec4(-48, -2, -2, 0); chessProgram.uniforms.width = 128; // What to draw chessCube.draw(); // Disable all the things chessCube.unbind(); glUseProgram(0); }

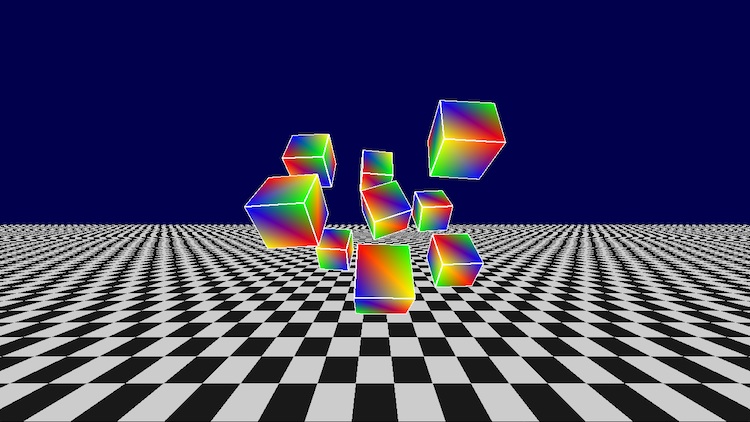

With a width of 128 and with 8192 instances, we'll end up with a 128x64 board of cubes.
Putting it together
Here is the commit that creates the classes that wrap the glBindBuffer and glBufferData calls and implements ChessCube. In the next commit I set the rainbow cubes spinning as shown in the example video and picture.
Next up
Textures! I make a textured six-sided die, including the texture itself.
